Standard Features & Benefits

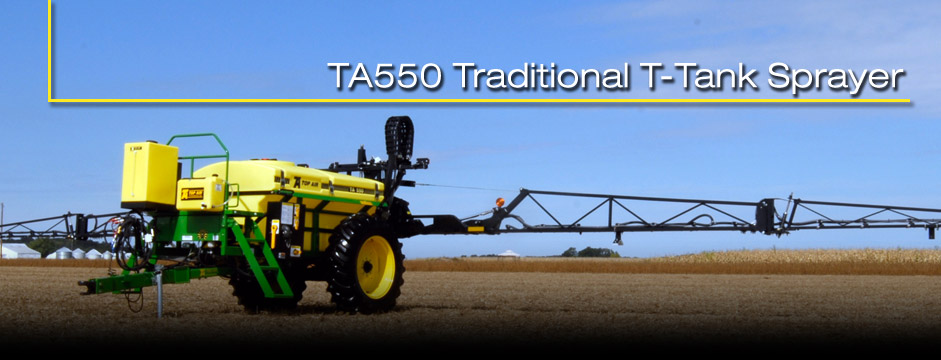

When your operation depends on timely application, look no further than the traditional 550-T-Tank from Top Air. With various boom choices and a 550-gallon capacity, this time-tested sprayer will meet your toughest spraying requirements.
Meeting Your Spraying Needs to a "T"
- The ample 550-gallon tank capacity is optimum for mid-sized farmers.
- Optional 50-gallon rinse tank for quick and complete cleaning from one tank solution to another.
- 9-gallon clean water tank with eyewash tube, spout and storage compartment.
- Dual spring-loaded stairs for quick and convenient access to the platform from either side.
Additional Features
- Booms available for the TA550- 45' Manual-Fold, 45' Hydraulic Cross-Fold and 60' Hydraulic Cross-Fold.
- Stainless steel interior baffle offers optimum load stabilization, while two interior agitators keep the spray solution properly suspended.
- Adjustable axle to meet virtually any row crop spacing.
- Centralized Command Center- provides easy access to sprayer functions and is also equipped with a 2" quick-fill for fast filling.
- Choose from multiple wheel and tire options as well as a dual wheel package that offers high flotation and helps minimize any compaction concerns.
- Unique three-way, fully adjustable axle allows:
- Front-to-back adjustment for proper balancing of the sprayer to match the boom size
- Width adjustment from 60-120 inches to match rows as narrow as 15 inches
- Height adjustment for proper crop clearance;
- All booms feature hydraulic height adjustment and are self-leveling. Boom wings can tilt from 15-degrees above to 5-degrees below horizontal for consistent, uniform spray application on uneven terrain or terraces.
- Roller and ramp breakaway system helps protect the outer boom wings by allowing the wings to swing back clearing any objects in which inadvertent contact is made.
- Cross-fold booms feature on-the-go height adjustability, for crop clearances of 14"-62", depending on trailer axle setting and wheel option.
- All sprayer purchases include a set of tips for the boom. Choose from a set of TeeJet XRC, AIC, AIXR or Turbo Drop Green Leaf Tips. See our Top Air Tip Catalog for available tips.
- Cross-fold booms have a compact transport height and width along with hydraulic transport locks for secure transport.
- Cross-fold booms also offer vertical tilt for spraying over uneven terrain along with 48-inches of on-the-go vertical height adjustment for spraying different size crops.
- Available in red or green.
Accessories
- Optional high-capacity 15-gallon chemical inductor lowers to waist level and has a large opening for convenient filling, features a built-in container rinse and easily returns to storage position with a spring assist return.
- Chemical Inductor - Features a 16” lid for easy filling and induces chemicals on the pressure side of the pump, to avoid running abrasive or harsh chemical through the pump.
- Rinse Tank (50-gallon)
- Electric Over Hydraulic Kits (Offered on 60' cross-fold and 45' hydraulic cross-fold booms)
- Fence-Row Nozzle - Easily spray the end rows with this accessory
- Units with cross-fold booms are manual controlled
- Foam Marker - Effortlessly combines foaming solution with water from the rinse tank at the boom for a consistent, highly visible foam.
- Hydraulic Hose Kits (Offered on all cross-fold booms)
- Hydraulically Driven Centrifugal Pump (Hypro- 9306C-HM1C)
- Pumps- (60' cross-fold booms)
- PTO 540 RPM (Ace® 540)
- PTO 1000 RPM (Ace® 1000)
- PTO 540 RPM (Hypro® 540)
- PTO 1000 RPM (Hypro® 1000)
- Hydraulically Driven Centrifugal Pump (Hypro®- 9303C-HM4)
- Ceramic Tips (TeeJet®)
- Controller (TeeJet- 744A®)
